Creating an outdoor environment that stands up to Dallas’s heat, occasional heavy rains and shifting seasons means thinking beyond aesthetics. When you weave irrigation and drainage systems into your hardscape design from the start, you build resilience into every patio, walkway, and retaining wall. Careful planning prevents erosion, protects structures, and keeps plants healthy. This guide explores practical approaches—drawing on local climate data and best practices—to help you design hardscape features that look great and function flawlessly year after year.

Plan Your Hardscape with Water in Mind

Before you select pavers or seating walls, map how water moves across your property. Dallas averages 37 inches of rain annually (National Weather Service), much of it falling in intense storms. Grade your site so runoff flows away from foundations and toward planted areas or engineered drainage. Use a gentle slope of at least 1% (roughly a ⅛-inch drop per foot) on patios and paths to avoid pooling. Incorporate channels, gravel trenches, or French drains along edges to intercept water before it threatens hardscape joints.

Choose Durable Materials and Proper Installation Techniques

Not all stone or concrete behaves the same under sun and water stress. Opt for pavers rated for freeze‑thaw cycles and resistant to surface spalling. Flagstone and travertine offer natural beauty and grip underfoot but require sealing to prevent staining. If you prefer concrete pavers, look for commercial‑grade products with a high compressive strength (at least 4,000 psi). During installation, compact the subbase to at least 95% Proctor density to support heavy loads and prevent settling. Make sure base layers are clean, well‑graded sand or crushed rock to facilitate drainage beneath the surface.

Integrate Irrigation for Soil Health and Plant Survival

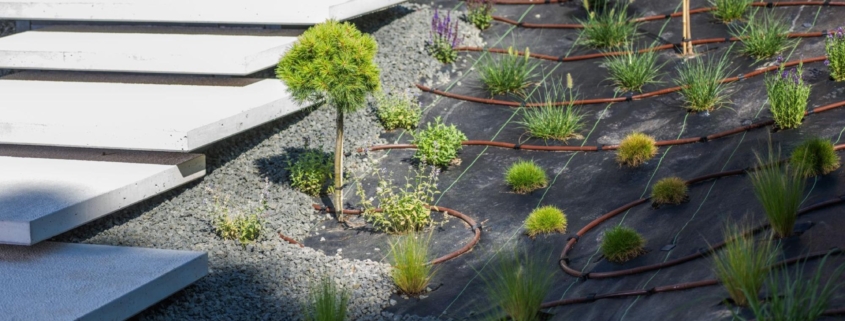

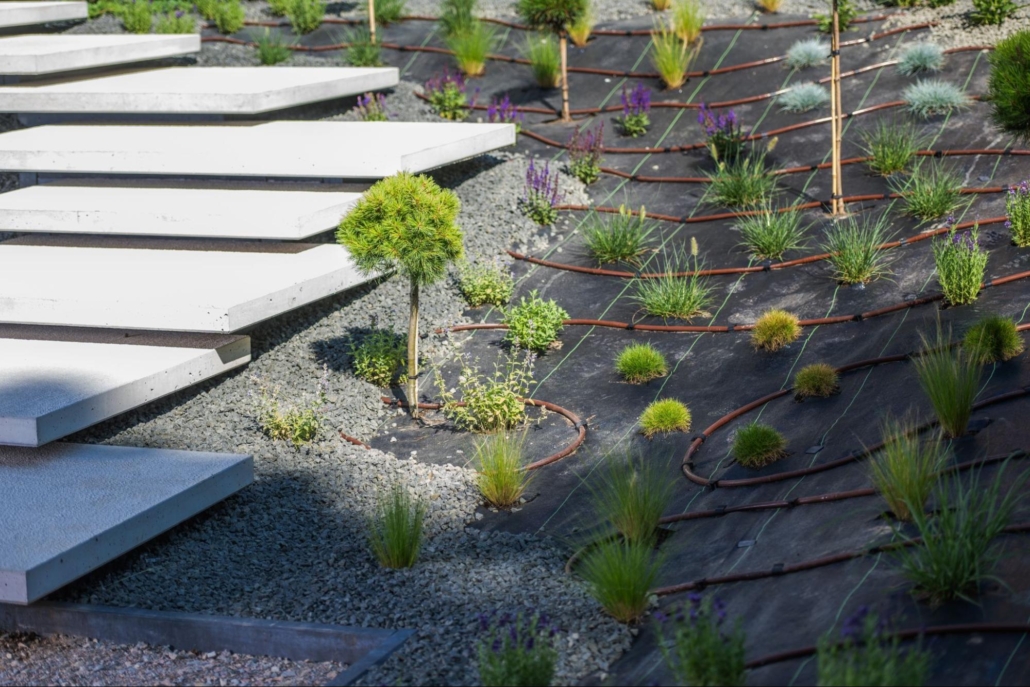

Hardscape can create pockets of reflected heat and compacted soil that stress nearby plants. Drip irrigation lines laid under mulch deliver water directly to roots, reducing evaporation by up to 30% compared to sprinklers (EPA WaterSense). Place drip emitters at the drip line of trees and on both sides of shrub rows to ensure even hydration. Use moisture sensors to trigger watering only when the soil dips below optimal moisture levels. This prevents overwatering, which can wash away soil around paver joints and invite weeds.

Design Effective Drainage for Longevity

Even the best‑built hardscape requires a plan to handle excess water. French drains—trenches filled with gravel and a perforated pipe—work behind retaining walls and along uphill borders to carry water away quietly and efficiently. Dry creek beds lined with river rock offer a decorative solution: they channel runoff during storms and lie nearly invisible the rest of the time. For flat areas, consider linear trench drains with stainless steel grates that blend into modern designs. Tie these into your stormwater system or direct overflow toward rain gardens planted with native, water‑tolerant species like Texas sage and Muhly grass.

Blend Function and Form with Grading and Transitions

Transitions between hardscape and softscape should feel seamless. Use gentle berms or low walls to guide foot traffic and water flow. A 6‑ to 12‑inch berm under pergolas or seating walls can both elevate views and direct runoff toward planting zones. Where patios meet lawns, install a hidden channel drain beneath the edge to keep turf dry and prevent mud tracking. This prevents soil erosion and protects lawn edges, saving hours of cleanup and repair after heavy storms.

Protect Wood Elements with Proper Drainage

Pergolas, decks, and timber retaining walls bring warmth to your landscape, but wood must stay dry at its base. Keep wooden posts and beams at least 6 inches above soil or paver surfaces. Use adjustable post anchors set on concrete footers to prevent rot. Surround these with pea gravel or crushed stone to wick moisture away and stop splash damage. Check drainage around these features annually to clear sediment that can trap water.

Leverage Technology for Smarter Maintenance

Smart controllers for irrigation adjust watering based on real‑time local weather data, cutting water use by up to 20% (Texas Water Development Board). Incorporate a remote‑access system so you can tweak schedules from your smartphone when the forecast changes last‑minute. Pair this with a maintenance app that reminds you to clear debris from drains, reseal stone surfaces, and inspect high‑use areas after storms.

Case Study: A Dallas Backyard Transformation

A homeowner in Preston Hollow combined a travertine patio with a hidden channel drain and drip‑irrigated plantings. By grading the site toward a dry creek bed, they eliminated flooding in the entertainment area. They saved 40% on seasonal irrigation costs and saw no soil erosion around patio edges after a 6‑inch rainstorm that flooded neighboring yards. Their investment in premium materials and drainage paid for itself in reduced maintenance and preserved property value.

Tips for Long‑Term Success

  • Inspect drains quarterly and clear leaves or sediment to keep water flowing.
  • Reseal stone patios every two years to protect against staining and surface damage.
  • Prune and mulch planting beds to reduce runoff speed and improve soil absorption.
  • Monitor soil moisture with a probe to adjust irrigation zones seasonally.
  • Work with licensed professionals holding an irrigation license (#6850) to ensure code compliance and peak performance.

By integrating irrigation and drainage with hardscape design, you construct an outdoor space that wows guests and weathers storms with equal grace. Your patio, walkways, and seating walls become more than decorative; they become durable assets that enhance usability and cut maintenance needs for decades.
