How to Layer Irrigation and Drainage Systems in Compact Urban Landscapes

Urban landscaping in places like Dallas, TX and surrounding areas presents a unique set of challenges. Limited space, hardscape surfaces, clay-heavy soil, and inconsistent rainfall patterns mean every square foot must be used efficiently, not just for aesthetics but also for function. One of the most overlooked but essential parts of this puzzle is how irrigation and drainage systems work together.

For homeowners and property managers in urban settings, knowing how to layer these systems can make the difference between a thriving green space and a flooded yard or dying plants. This blog breaks down how to plan, install, and maintain an integrated irrigation and drainage system, especially when working with compact properties.

Why This Topic Matters in Dallas: Data That Supports Smarter Water Use

Dallas has a humid subtropical climate, with long, hot summers and unpredictable rainfall. According to the City of Dallas Water Conservation Department, landscape irrigation accounts for nearly 50% of residential water use, and a significant portion is wasted due to poor planning or runoff. Additionally, the area’s clay-heavy soil struggles to absorb water quickly, which means inadequate drainage can result in flooding, erosion, or plant death.

With increasing concerns about water conservation and sustainable design, especially in high-density areas like downtown Dallas, layering irrigation and drainage properly is no longer optional, it’s essential.

Step 1: Assess Your Urban Landscape Space

Start by mapping your property, front yard, backyard, side yards, and even rooftop gardens. Make note of:

• Sunlight patterns
• Slope and elevation
• Impervious surfaces like concrete or patios
• Existing water runoff paths
• Drainage problem areas (e.g., standing water)

Tip: In small urban yards, even a slight slope or sun-shadow from a fence or building can drastically change water needs and flow.

Step 2: Design the Drainage System First

Drainage is your foundation. Before you think about watering your landscape, you need to think about how to get rid of excess water, especially during a Texas downpour.

Key Drainage Options for Small Yards:

1. French Drains
   A perforated pipe laid in gravel trenches that collects and redirects subsurface water away from foundations or low spots.
2. Catch Basins
   Surface drains with grates that collect water quickly and move it through underground piping to the street or a dry well.

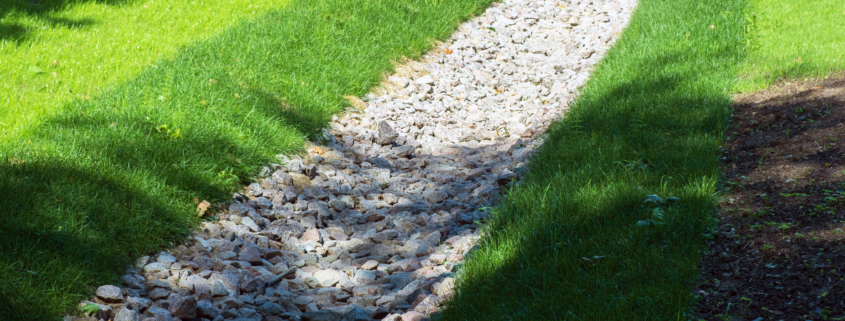

3. Dry Creek Beds or Swales
   Decorative yet functional channels lined with rock that guide water away and double as landscape features.
4. Gutter Downspout Extensions
   Extend your roof drainage system to direct rainwater away from key areas. This is often overlooked but critical in compact spaces.

💡 Smart drainage = fewer irrigation mistakes and healthier plants.

Step 3: Choose an Irrigation System That Works With Your Drainage

Once drainage is in place, layer your irrigation system around how water already moves through your yard. In compact urban landscapes, efficiency and precision are key.

Best Irrigation Types for Urban Spaces:

• Drip Irrigation: Delivers water directly to plant roots, reducing evaporation and runoff. Ideal for flower beds, narrow side yards, and containers.
• Micro-Sprayers: Use less water than traditional sprinklers and are adjustable to cover odd-shaped patches.
• Smart Irrigation Controllers: Use weather data and sensors to adjust watering schedules. These save money and prevent overwatering during rainy weeks.
• Rain Sensors: Automatically pause irrigation when rainfall is detected, important when drainage systems are already working overtime.

Step 4: Integrate the Systems

Here’s where it all comes together, layering your irrigation and drainage systems so they work with each other instead of against.

How to Properly Layer the Two:

• Run drip lines above or alongside French drains to prevent oversaturation of any one area.
• Use the same trench where possible. For example, a French drain trench may double as the path for irrigation tubing with proper separation.
• Route overflow from irrigation zones into swales or catch basins.
• Elevate garden beds slightly if you’re irrigating near areas with poor natural drainage.

Always slope away from foundations and hardscape to avoid pooling and erosion.

Step 5: Plan for Seasonal Adjustments

In Dallas, summer is scorching, while winter can bring freezes. Layered systems need seasonal attention:

• Fall/Winter: Shut off irrigation and ensure drains are free of debris.
• Spring: Test irrigation and clean filters. Ensure drains are still flowing and haven’t shifted.
• Summer: Increase irrigation frequency, but check your drainage after each storm to ensure it’s keeping up.

Step 6: Work With a Local Pro Who Understands North Texas Landscapes

Not all irrigation and drainage issues are DIY-friendly, especially in tight urban yards. Soil type, slope, city code compliance, and even hidden utility lines can complicate things.

That’s why working with a team like Stewart Lawncare & Landscape can save you time, money, and a lot of headaches. We know Dallas soils. We’ve solved tricky runoff issues in narrow yards. We design with both beauty and functionality in mind.

Final Checklist for Small Urban Yards

✔️ Evaluate the space
✔️ Install drainage first
✔️ Use efficient irrigation techniques
✔️ Combine systems where possible
✔️ Adjust seasonally
✔️ Ask for help when needed

FAQs: Urban Irrigation and Drainage in Dallas, TX

How do I know if my yard has drainage problems?

If you see standing water after a rain or areas where plants constantly die, that’s a sign you need drainage improvement.

Can I use the same trench for irrigation and drainage?

Yes, with proper planning. Pipes should be separated and sealed to avoid cross-contamination and oversaturation.

What’s the best irrigation for a small urban yard?

Drip irrigation is typically best for small spaces. It’s precise, affordable, and won’t flood compact planting areas.

Does Dallas require permits for drainage work?

For major drainage rework or tie-ins to public systems, yes. Minor French drains and swales usually don’t require permits, but it’s best to check.

What happens if I install irrigation without drainage?

You risk flooding, root rot, foundation damage, and higher water bills due to inefficient watering.
